Technical parameters

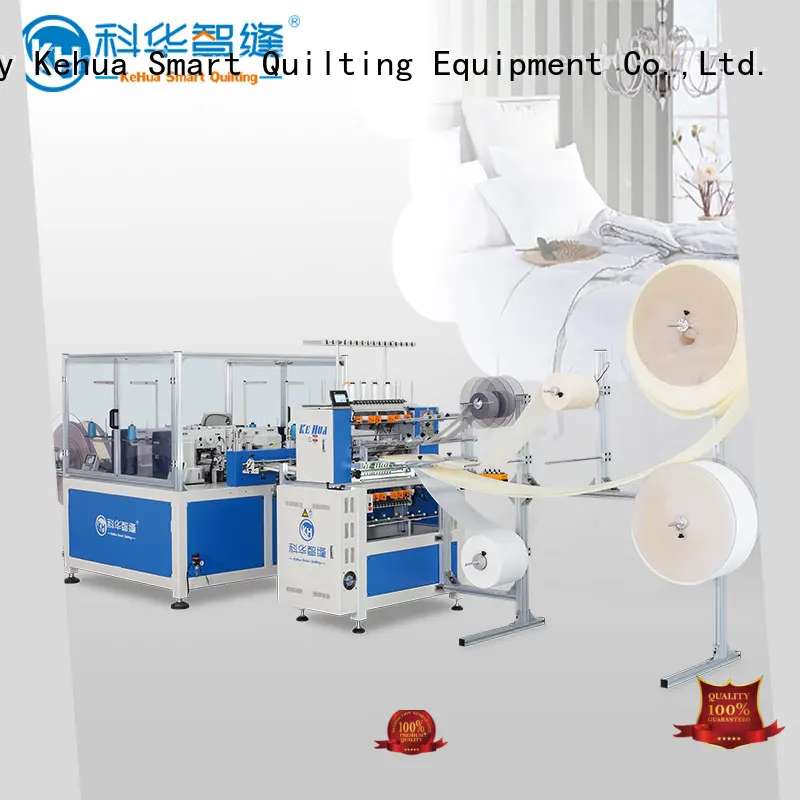

  • KH-DK104 Four-head Dotting Machine
    KH-ZX1 Linear Motor
  • Maximum speed:   2500RPM
    Maximum rotation speed:   1200RPM
  • Sewing width:          ≤400mm
    Quilting Width:                    406mm
  • Sewing thickness:   ≤30mm
    Quilting Thickness:             ≤25MM
  • Output:                    1~5m/min
    Stitch Length:                      2-5mm
  • Stitch Length:          4~6mm
    Needle Stitch:                     6.35mm
  • Total power:            3.0KW
    Total Power:                        2KW
  • Power supply:         220V  50HZ
    Power Supply:                   220V 50HZ
KH-DK104 Product Main Information

1.Adopt four Japanese original Brother sewing machine heads, which can work at the same time, also can work independently, and the productivity is more efficient;


2.Professional control system, programmable design interface, touch-screen control, easy to operate;




3.Able to move to left or right along X, roller cloth feeding and adopt imported servo motors, ensuring high precision;


4.16-axle full-automatic control, can be fully automatic or separate axle controlled, with pattern sewing of high precision;




5.Automatic thread cutting without any thread residue;


6.Automatic cloth receiving and feeding device in synchronous movement;




7.Able to design according to the patterns of clients.

KH-ZX1 Product Main Information

1.Automatic operation;


2.Thread-breaking checking device;




3.Tailing materials stopping device;


4.Adopts the servo motor to control the sewing speed.
