1.Windows operating system;
Quilting Series

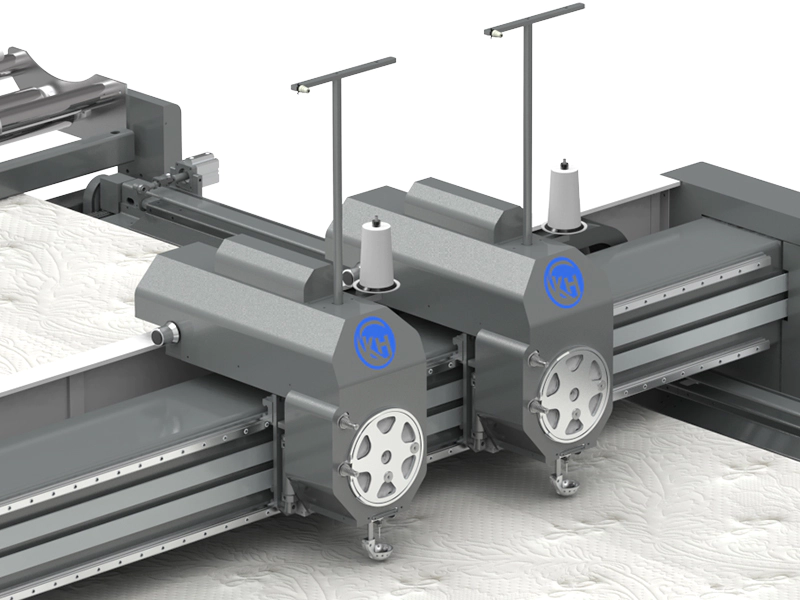

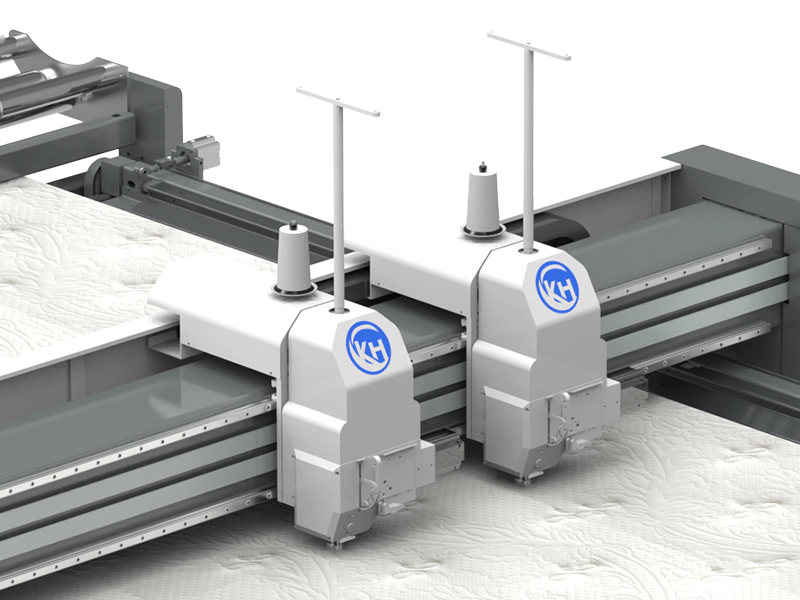

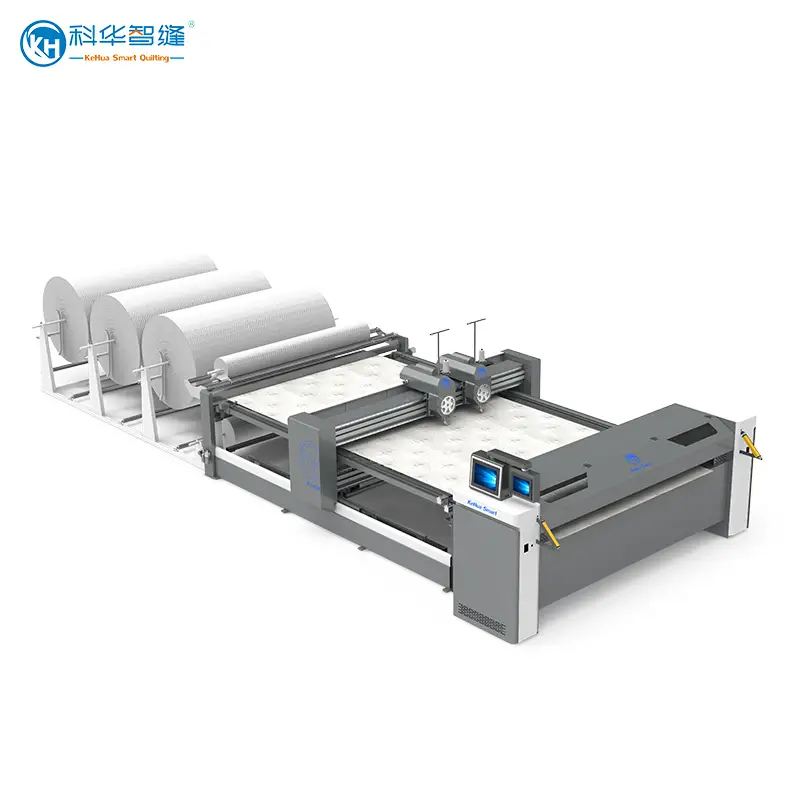

KH-V2A / DK2S Full-Auto Dual-Needle Quilting Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameters
| V2A | DK2S |
Quilting Thickness | ≤100mm | ≤80mm |
Quilting Width | ≤2400mm | |
Rotating Speed Of Needle | 3200RPM | |
Stitch Length | 2-6mm | |
Overall Dimension | 9300x3685x1980mm | |
Total Weight | 2600kg | |
Power Supply | 380V,50HZ | |
Total Power | 12KW | 9KW |
Product Main Information
2.Imported servo motors;
3.Full automatic working, automatic lifting edge cutter cutting;
4.Presser foot can be adjusted according to different thickness；
5.Real time data protection, operation continuing in original position after sudden power shortage;
6.Output counting, pattern effect display, processing locus display functions;
7.Auto thread trimming, auto-stop when thread-breaking, patterns auto-positioning amending after thread-breaking.
