1.Windows operating system;
Quilting Series

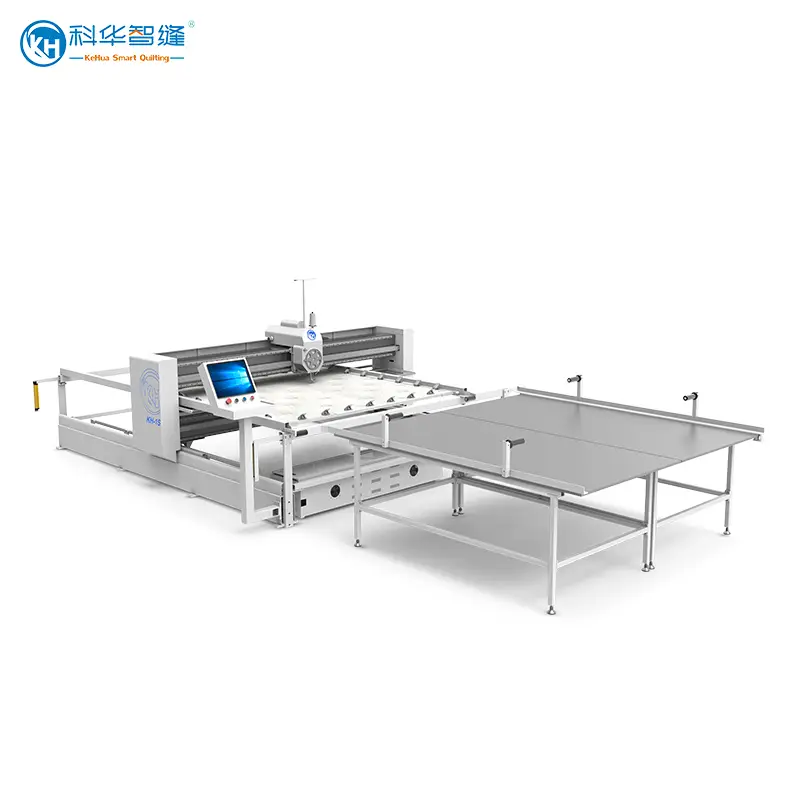

KH-1S / 1H Pattern Stand Single-Needle Quilting Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameters
| 1S | 1H |
Quilting Thickness | ≤100mm | ≤80mm |
Quilting Width | 2400x2600mm | |
Rotating Speed Of Needle | 3200RPM | |
Stitch Length | 2-6mm | |
Total Weight | 1500kg | |
Power Supply | 380V,50HZ | |
Total Power | 8KW | 6.5KW |
Product Main Information
2.Auto thread trimming, auto-stop when thread-breaking, patterns auto-positioning amending after thread-breaking;
3.Output counting, pattern effect display, processing locus display functions;
4.Professional pattern-designing software, scanner-input patterns with BMP format, CAD method pattern designing；
5.Real time data protection, operation continuing in original position after sudden power shortage;
6.360°jump quilting, large capacity patterns storage system(up to 100.000 and above patterns).

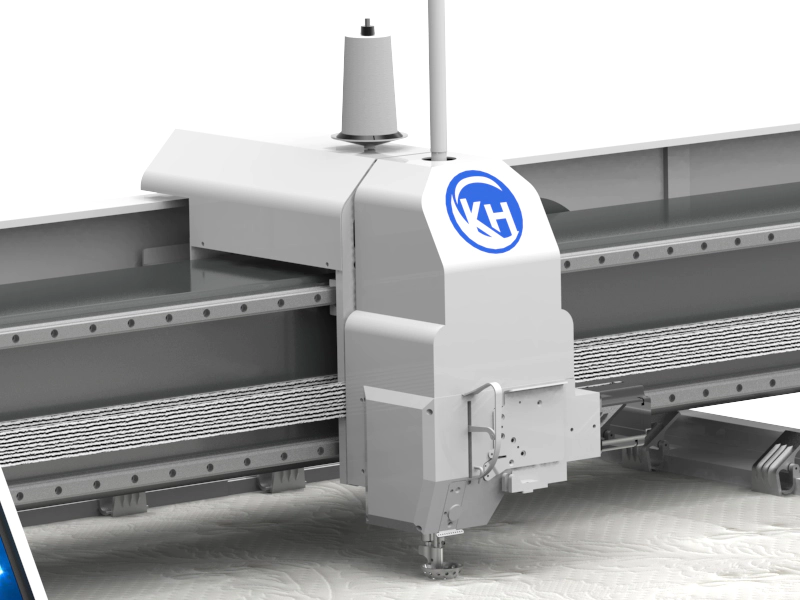

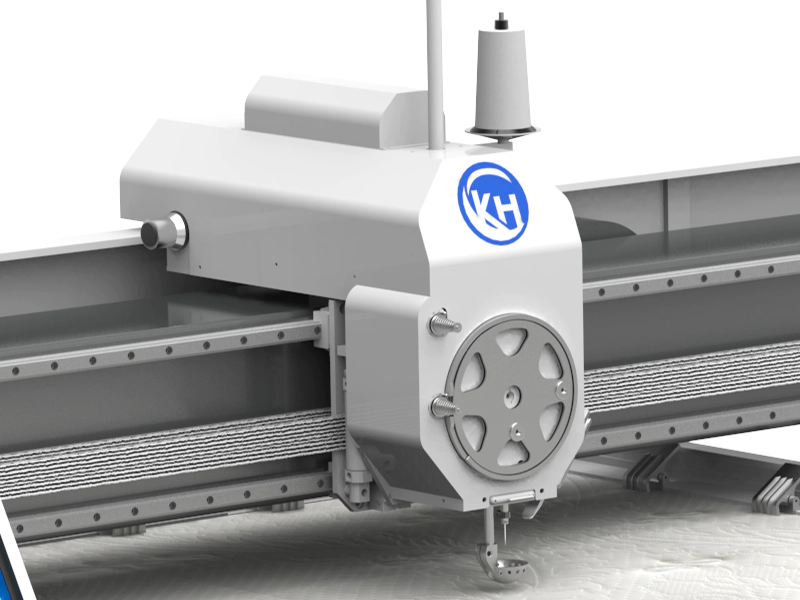

Details of the figure
Patterns figure
