KH-420  Hi-speed Multi-Needle Quilting Machine

KH-420 Hi-speed Multi-Needle Quilting Machine

Quilting Width
≤2400mm
Quilting Thickness
≤80mm
Rotating Speed of Needle
1350RPM
Stitch Length
1-6mm
Needle Array Pitch
25.4mm(12.7 optional)
Overall Dimension
6440×4870×2720mm
Total Power
7.5KW
Power Supply
380V,50HZ
Total Weight
5000kg
Product Main Information

1.Innovative appearance patent design, more beautiful and steady;


2.Maximum speed up to 1350RPM, resulting in higher efficiency;




3. Adopt Windows operating system, easy operation, patterns intuitive and precise;


4. Computerized compensation and extent amendment, ensuring better precision and perfection;




5. Funcitions such as Infrared disconnection detection with automatic stop and automatic thread trimming;


6. Adopt imported servo motors, high precision;




7. Quilting length adjustable, auto stop when completed; Pattern effect process track, auto detection operation;


8. Split hook design, replace the hook without adjustment;




9.Peripheral buttons to control the spindle to rotate positive and reversal, adjust hook more easily;


10.The whole machine is set with the infrared light curtain protection, touch the hand to stop, more secure and reliable.

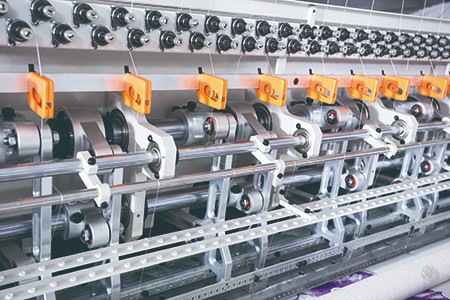

Details of the figure

Patterns figure
