1.Adopt advanced outsize lockstitch sewing, random span quilting, auto thread-breaking checking and pattern amending. The presser foot can be adjusted according to different thickness;

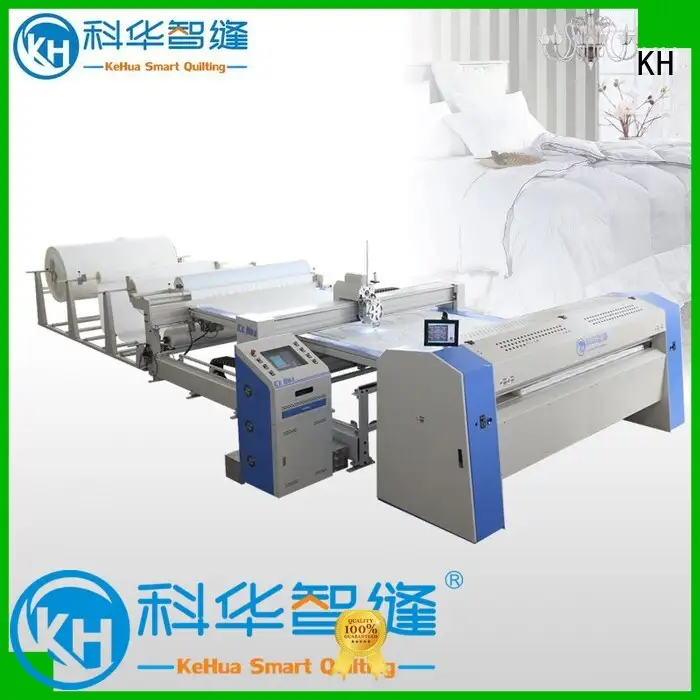

Best quilting machines dualneedle factory for workplace
Quilting Width:
≤2400mm
Quilting Thickness:
≤80mm
Rotating Speed of Needle:
2800RPM
Stitch Length:
2-6mm
Capacity:
50-150m/h
Overall Dimension:
10000×3800×1900mm
Total Power:
8.5KW
Power Supply:
380V,50HZ
Total Weight:
2500kg
Product Comparison
Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, Kehua 's Quilting Machine Series is highly competitive in the domestic and foreign markets.Compared with other products in the same category, Quilting Machine Series has the following competitive advantages.
-
v s
1. quilting machines is a commercially viable and environmentally sound alternative.
2. The product is mold and fungus resistant. The mildew preventive is used during its fabric process to eliminate any harmful microorganism and bacteria.
3. This product has strong wear and tear resistance. Its surface is treated with the anti-scratch technique, which makes it withstand heavy use.
4. It is estimated that the product has a long service life in the market.
Product Main Information
2.Windows operating system, can deal with various kinds of complicated patterns precisely;
3.360°jump quilting, large capacity patterns storage system, storage of patterns up to 100 thousand and above;
4.Equipped with functions such as output counting, pattern effect display, processing locus display, auto thread trimming, auto-stop when thread-breaking, etc;
5.Real time data protection, operation continuing in the original position after sudden power shortage;
6.Patterns quilting can be chosen randomly, patterns auto-positioning amending after thread-breaking;
7.Adopt imported servo motors for controlling ensuring better precision and stability;
8.Low noise and vibration, precise operation, stable performance and reliability;
9.Professional pattern-designing software. Scanner-input patterns with BMP format; CAD method pattern designing can be randomly amended and copied;
10.auto-lifting edge-cutting device required processing sizes can be realized in one time, extra cutting is not necessary;
11.Auto cloth-feeding, cutting, less labor.
12. 600 meters extra-long bobbin thread,which is three times as long as the ordinary big rotary hook.
Details of the figure
Patterns figure
Company Features
1. Since our inception, Foshan City Kehua Smart Quilting Equipment Co.,Ltd. has built a reputation for high-quality best sewing machine for quilting and embroidery which has been expanded to various industries.
2. The factory has established an excellent quality management system that covers several subsystems, such as production systematization, process standardization, and resource management. This system gives us more flexibility and better control over the whole production.
3. KH's mission is to serve the quilting machines to decorate the lives of customers. Inquire online! KH adheres to the goal of quilting sewing machine reviews to provide customers with competitive products and service. Inquire online! Foshan City Kehua Smart Quilting Equipment Co.,Ltd. will do its best to create maximum convenience for customers! Inquire online!
Ultrasonic quilting machine and embossing machine in china
APPLICATION OF ULTRASONIC QUILTING MACHINE
It is suitable for chemical fiber fabric, artificial leather, non-woven fabric, sprayed cotton, thermoplastic film, chemical plastic film, knitted, clothing cloth, fabric, shoe, interior decoration, urine is not wet, Medical sanitary napkins, cushions, cushions, anti-skid pads, body armor, bedding and automotive industries.
YOU CAN SEE OUR QUILTING MACHINE VIDE IN YOUTUBE
https://youtu.be/XfEzlHyDHQU
https://youtu.be/jMt-70BzWm0
https://youtu.be/Y6Hscz7UbaM
FEATHERS OF ULTRASONIC QUILTING MACHINE
1. Welding time is short, automatic ultrasonic suture needle and thread, eliminating the need for frequent needle for the trouble, the sewing speed is 5 to 10 times the sewing machine quilted, wide by the customer self-
2. As a result of no needles, to avoid the sewing process with broken needle in the material within the situation, eliminating the security risks, a new generation of safety and environmental protection products;
3. There is no traditional line stitching disconnection joints, strong sticky, embossed clear, the surface is more three-dimensional relief effect, the product is more high-end beautiful;
4. After processing products without pinholes do not seepage, more waterproof and warm effect;
5. The use of flower roll mold, mold for easy, can be stitched out of the ever-changing and complex non-continuous and symmetrical patterns, but also according to customer needs to develop a variety of flower-shaped pattern;
6 According to customer material characteristics, can be customized.
SPECIFICATION OF ULTRASONIC QUILTING MACHINE
Voltage | 380V 50HZ |
Generator power | 600w*(6-20 sets) |
Working frequency | 20KHZ |
Working speed | 0-400m/h |
Effective roller length | 1520mm / 1820mm / 2150mm / 2450mm / 2750mm/3200mm |
Roller diameter | 130mm- 270mm |
Motor power | 1.5 KW-5KW + 0.75KW-2KW + 0.75KW |
Dimensions | 7000 × 2500 ×2100 (L × W× H) (1850 type) |
Weight | 2.4T-5T |
PICTURES OF ULTRASONIC QUITLING MACHINE
Established in 2008, Yancheng Jeakar International Trade Co., Ltd. is located in Yancheng of Jiangsu Province, a beautiful coastal city. The company integrates purchase, sales and OEM products processing
The company is mainly engaged in the import and export of QUILTING MACHINE,LAMINATING MACHINE,HYDRAULIC CUTTING MACHINE,EMBOSSING MACHINE ,SLITTING AND REWINDING MACHINE ,SPONGE MAKING MACHINE,etc.which is widely used for garment,shoemaking ,leather ,sponge ,luggage and baggage ,automobile decoration,hats ,woods ,plastic packing ,packing ,toys ,stationery ,plyurethane preocessing and air conditioner refrigeration etc
If you have any inquiry about quilting machine ,embossing machine ,cutting machine or laminating machine etc ,pls freely contact with Ms.Jenny
